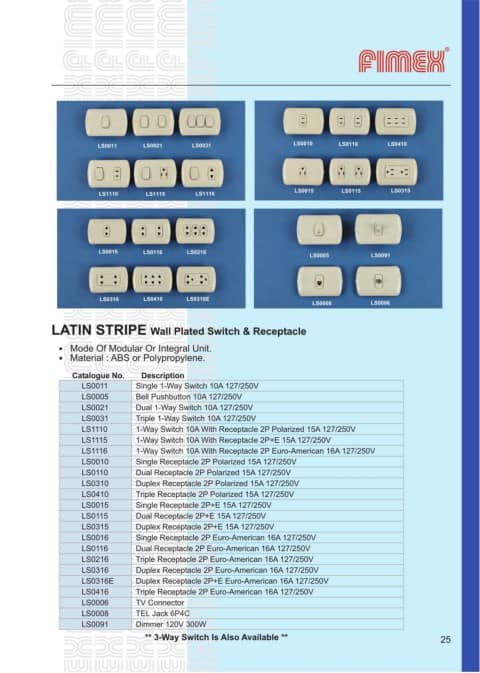

Page 27 - Fimex Taiwan Ltd_Electrical Material-American

LS0011 LS0021 LS0031 LS0010 LS0110 LS0410

LS0015 LS0115 LS0315
LS1110 LS1115 LS1116

LS0016 LS0116 LS0216
LS0005 LS0091

LS0316 LS0416 LS0316E
LS0008 LS0006

LATIN STRIPE Wall Plated Switch & Receptacle

․ Mode Of Modular Or Integral Unit.
․ Material : ABS or Polypropylene.

Catalogue No. Description
LS0011 Single 1-Way Switch 10A 127/250V
LS0005 Bell Pushbutton 10A 127/250V
LS0021 Dual 1-Way Switch 10A 127/250V
LS0031 Triple 1-Way Switch 10A 127/250V
LS1110 1-Way Switch 10A With Receptacle 2P Polarized 15A 127/250V
LS1115 1-Way Switch 10A With Receptacle 2P+E 15A 127/250V
LS1116 1-Way Switch 10A With Receptacle 2P Euro-American 16A 127/250V
LS0010 Single Receptacle 2P Polarized 15A 127/250V
LS0110 Dual Receptacle 2P Polarized 15A 127/250V
LS0310 Duplex Receptacle 2P Polarized 15A 127/250V
LS0410 Triple Receptacle 2P Polarized 15A 127/250V
LS0015 Single Receptacle 2P+E 15A 127/250V
LS0115 Dual Receptacle 2P+E 15A 127/250V
LS0315 Duplex Receptacle 2P+E 15A 127/250V
LS0016 Single Receptacle 2P Euro-American 16A 127/250V
LS0116 Dual Receptacle 2P Euro-American 16A 127/250V
LS0216 Triple Receptacle 2P Euro-American 16A 127/250V
LS0316 Duplex Receptacle 2P Euro-American 16A 127/250V
LS0316E Duplex Receptacle 2P+E Euro-American 16A 127/250V
LS0416 Triple Receptacle 2P Euro-American 16A 127/250V
LS0006 TV Connector
LS0008 TEL Jack 6P4C
LS0091 Dimmer 120V 300W
** 3-Way Switch Is Also Available ** 25
