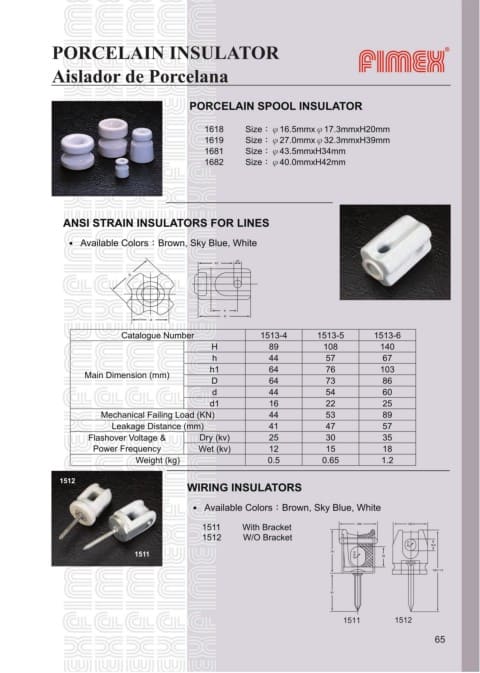

PORCELAIN INSULATOR
Aislador de Porcelana
PORCELAIN SPOOL INSULATOR
1618 Size：φ16.5mmxφ17.3mmxH20mm
1619 Size：φ27.0mmxφ32.3mmxH39mm
1681 Size：φ43.5mmxH34mm
1682 Size：φ40.0mmxH42mm
ANSI STRAIN INSULATORS FOR LINES
․ Available Colors：Brown, Sky Blue, White
Catalogue Number 1513-4 1513-5 1513-6
H 89 108 140
h 44 57 67
h1 64 76 103
Main Dimension (mm)
D 64 73 86
d 44 54 60
d1 16 22 25
Mechanical Failing Load (KN) 44 53 89
Leakage Distance (mm) 41 47 57
Flashover Voltage & Dry (kv) 25 30 35
Power Frequency Wet (kv) 12 15 18
Weight (kg) 0.5 0.65 1.2
1512
WIRING INSULATORS
․ Available Colors：Brown, Sky Blue, White
1511 With Bracket
1512 W/O Bracket
1511
1511 1512
