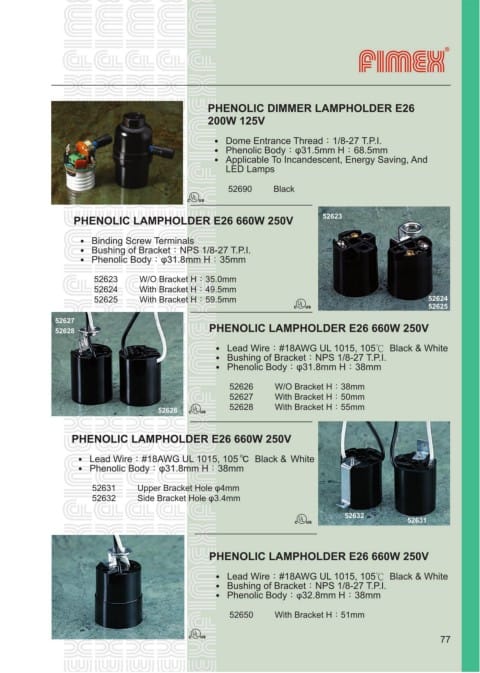

Page 79 - Fimex Taiwan Ltd_Electrical Material-American

PHENOLIC DIMMER LAMPHOLDER E26
200W 125V

˙ Dome Entrance Thread：1/8-27 T.P.I.
˙ Phenolic Body：φ31.5mm H：68.5mm
˙ Applicable To Incandescent, Energy Saving, And
LED Lamps

52690 Black

PHENOLIC LAMPHOLDER E26 660W 250V 52623

˙ Binding Screw Terminals
˙ Bushing of Bracket：NPS 1/8-27 T.P.I.
˙ Phenolic Body：φ31.8mm H：35mm

52623 W/O Bracket H：35.0mm
52624 With Bracket H：49.5mm
52625 With Bracket H：59.5mm 52624
52625

52627
52628 PHENOLIC LAMPHOLDER E26 660W 250V

˙ Lead Wire：#18AWG UL 1015, 105℃ Black & White
˙ Bushing of Bracket：NPS 1/8-27 T.P.I.
˙ Phenolic Body：φ31.8mm H：38mm

52626 W/O Bracket H：38mm
52627 With Bracket H：50mm
52628 With Bracket H：55mm
52626

PHENOLIC LAMPHOLDER E26 660W 250V

˙ Lead Wire：#18AWG UL 1015, 105 ℃ Black & White
˙ Phenolic Body：φ31.8mm H：38mm

52631 Upper Bracket Hole φ4mm
52632 Side Bracket Hole φ3.4mm

52632
52631

PHENOLIC LAMPHOLDER E26 660W 250V

˙ Lead Wire：#18AWG UL 1015, 105℃ Black & White
˙ Bushing of Bracket：NPS 1/8-27 T.P.I.
˙ Phenolic Body：φ32.8mm H：38mm

52650 With Bracket H：51mm

77
