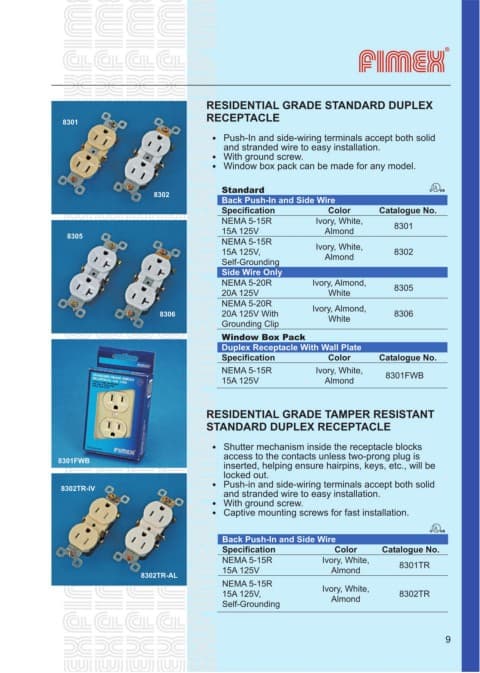

RESIDENTIAL GRADE STANDARD DUPLEX

                                                     RECEPTACLE
                 8301
                                                       ․  Push-In and side-wiring terminals accept both solid
                                                          and stranded wire to easy installation.
                                                       ․ With ground screw.
                                                      ․  Window box pack can be made for any model.


                                                          Standard
                                        8302
                                                          Back Push-In and Side Wire
                                                          Specification              Color        Catalogue No.

                                                          NEMA 5-15R              Ivory, White,
                                                          15A 125V                  Almond            8301
                  8305
                                                          NEMA 5-15R
                                                          15A 125V,               Ivory, White,       8302
                                                                                    Almond
                                                          Self-Grounding
                                                          Side Wire Only
                                                          NEMA 5-20R             Ivory, Almond,
                                                          20A 125V                   White            8305
                                                          NEMA 5-20R             Ivory, Almond,
                                          8306            20A 125V With              White            8306
                                                          Grounding Clip
                                                          Window Box Pack
                                                          Duplex Receptacle With Wall Plate
                                                          Specification              Color        Catalogue No.

                                                          NEMA 5-15R              Ivory, White,    8301FWB
                                                          15A 125V                  Almond



                                                      RESIDENTIAL GRADE TAMPER RESISTANT
                                                     STANDARD DUPLEX RECEPTACLE

                                                      ․  Shutter mechanism inside the receptacle blocks

                                                          access to the contacts unless two-prong plug is
                8301FWB

                                                          inserted, helping ensure hairpins, keys, etc., will be
                                                          locked out.
                                                      ․  Push-in and side-wiring terminals accept both solid
                8302TR-IV
                                                          and stranded wire to easy installation.
                                                      ․ With ground screw.
                                                      ․ Captive mounting screws for fast installation.


                                                          Back Push-In and Side Wire
                                                          Specification               Color        Catalogue No.
                                                          NEMA 5-15R               Ivory, White,       8301TR
                                                          15A 125V                    Almond
                                     8302TR-AL
                                                          NEMA 5-15R               Ivory, White,
                                                          15A 125V,                                    8302TR
                                                          Self-Grounding              Almond
