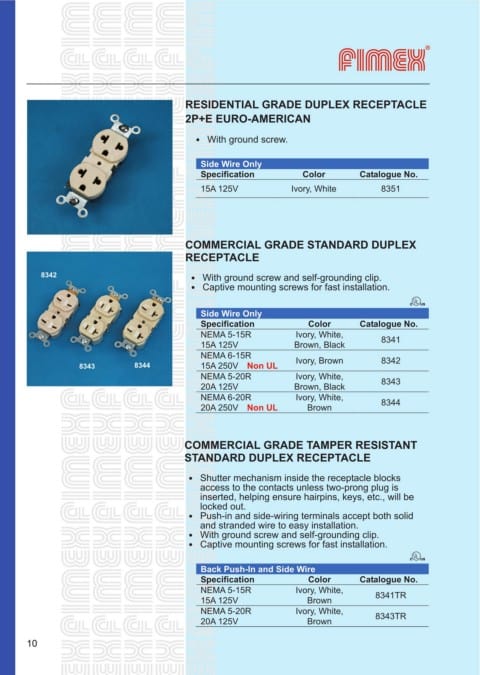

RESIDENTIAL GRADE DUPLEX RECEPTACLE
2P+E EURO-AMERICAN

․ With ground screw.

Side Wire Only
Specification Color Catalogue No.
15A 125V Ivory, White 8351

COMMERCIAL GRADE STANDARD DUPLEX
RECEPTACLE

8342 ․ With ground screw and self-grounding clip.
․ Captive mounting screws for fast installation.

Side Wire Only
Specification Color Catalogue No.
NEMA 5-15R Ivory, White,
15A 125V Brown, Black 8341
NEMA 6-15R
8343 8344 15A 250V Non UL Ivory, Brown 8342
NEMA 5-20R Ivory, White, 8343
20A 125V Brown, Black
NEMA 6-20R Ivory, White, 8344
20A 250V Non UL Brown

COMMERCIAL GRADE TAMPER RESISTANT
STANDARD DUPLEX RECEPTACLE

․ Shutter mechanism inside the receptacle blocks
access to the contacts unless two-prong plug is
inserted, helping ensure hairpins, keys, etc., will be
locked out.
․ Push-in and side-wiring terminals accept both solid
and stranded wire to easy installation.
․ With ground screw and self-grounding clip.
․ Captive mounting screws for fast installation.

Back Push-In and Side Wire
Specification Color Catalogue No.
NEMA 5-15R Ivory, White,
15A 125V Brown 8341TR
NEMA 5-20R Ivory, White,
20A 125V Brown 8343TR
